| Product Details | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Code | AVT-WS290 | ||||||||||

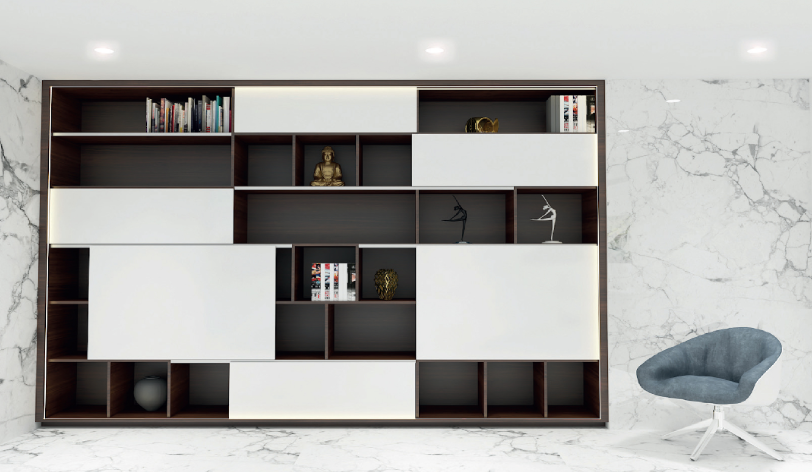

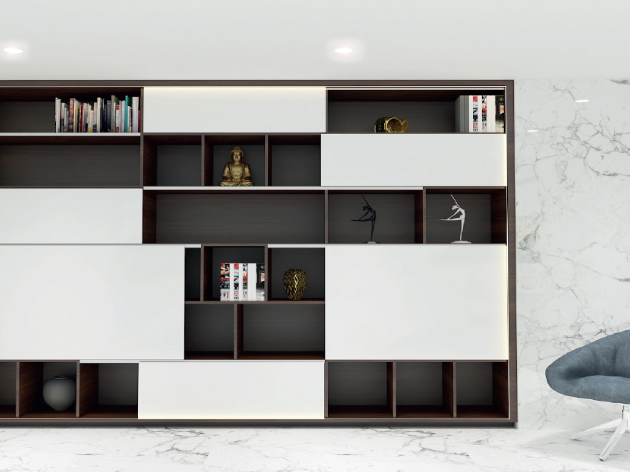

| Application | External concealed sliding door system for cabinets with light wooden or glass doors | ||||||||||
| Feature | Easy installation with no cutting or grooves required; anti-decoupling functionality (automatic hook coupling); durable polyoxymethylene wheel materials for optimum smoothness and silence in sliding doors; provides open and closed design elements on wall units. | ||||||||||
| Loading Capacity | 15 kg/door | ||||||||||
| Door Size Requirement | 500 < Single Door Width < 1200mm; 2.5*Door Width < Height< 2500mm | ||||||||||
| Accessories | 1 Door | Drawing | Accessories | 1 Door | Drawing |
|---|---|---|---|---|---|

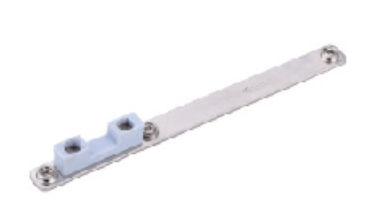

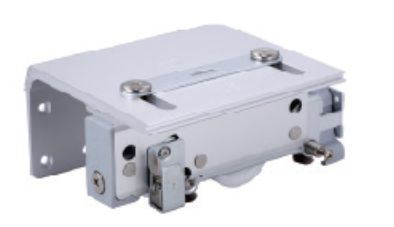

| Runner | 1 |  | Allen key | 1 |  |
| Damper | 2 |  | Cap For Alum. rail Ending | 4 |  |

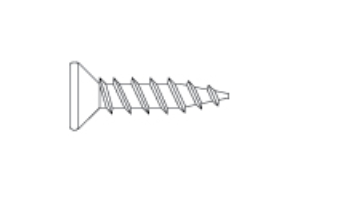

| ST4*16 Cross recessed countersunk head tapping screws | 48 |  | ST4x14 cross flat head self tapping screw | 16 | |

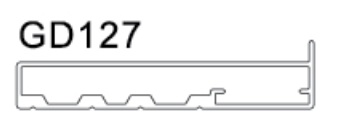

| Alum.rail | 2 |  | Track plastic fastener | 16 |  |
| Anti-slip off part | 4 |  | Drilling positioning template | 1 |  |
| Additional items for aluminum frame doors | |||||

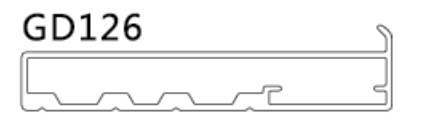

| Clip On Aluminum Frame |  | According to length | Aluminum Frame |  | According to length |
