Showing the single result

Product Details
Product CodeAVT-WS810

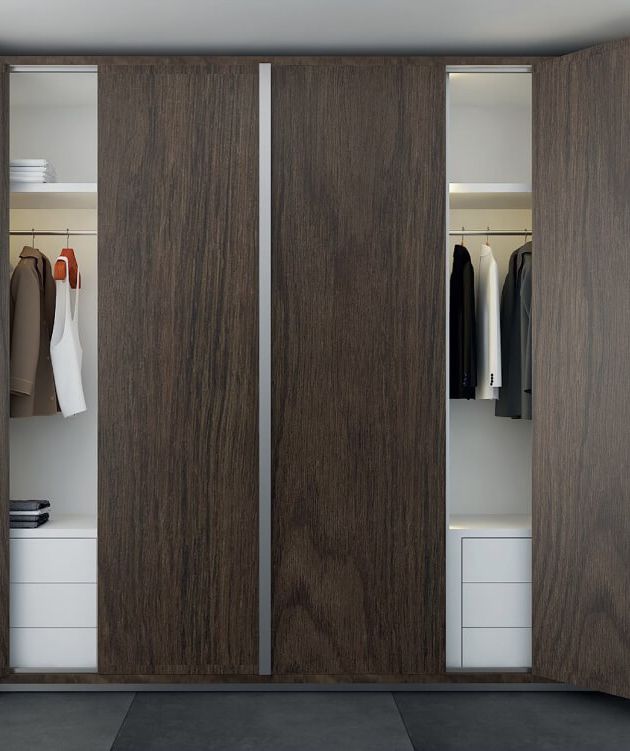

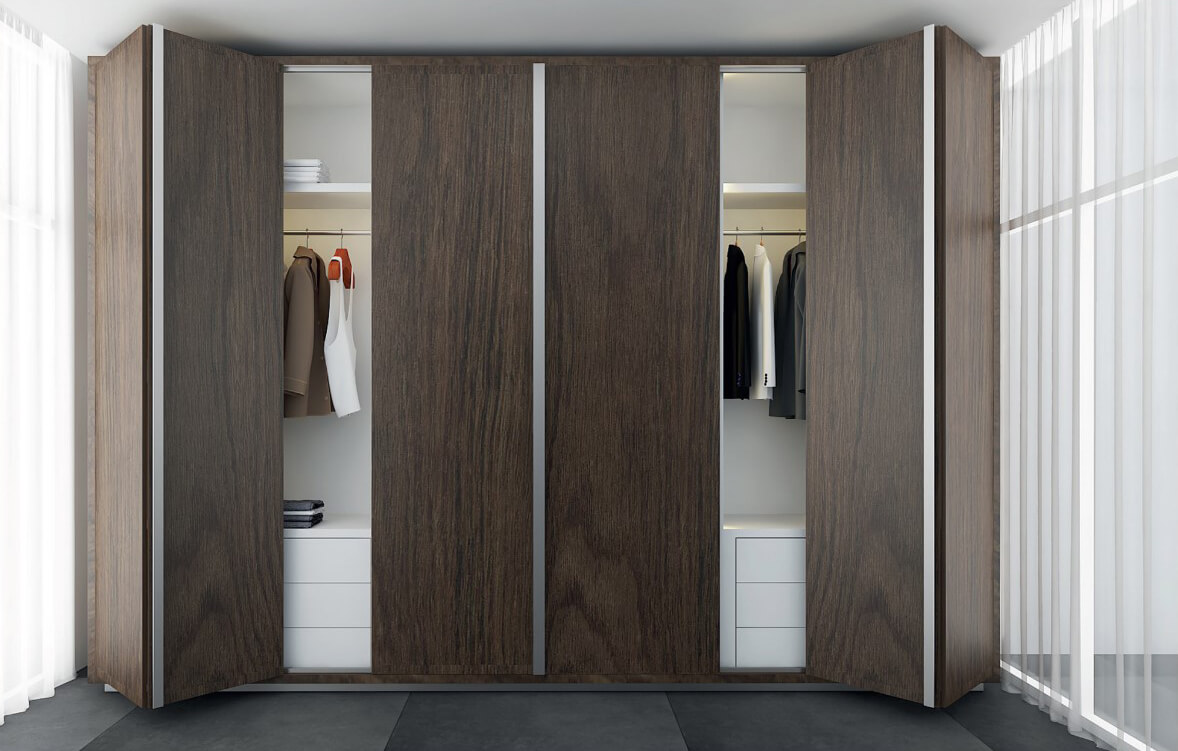

ApplicationConcealed Folding Sliding Door System
FeatureDurable polyoxymethylene materials used for wheels to achieve optimum smoothness and silence for the sliding door
Loading CapacitySingle Door Weight 20kg
Door ThicknessSingle Door Thickness 216mm
Door Size Requirement300 Single Door Width 600mm; Height 2500mm

Sliding door system accessories

AccessoryQtyAccessoryQty
Accessory-01Left upper roller1accessory-06Right upper roller1
Accessory-02Left down roller1accessory-07Right down roller1
Accessory-03T902 Plastic hinge4accessory-08Position template1
Accessory-048mm Spanner1accessory-09Damper2
Accessory-052mm Allen key1accessory-10ST 4* 16
+
Wood screw		46

Sliding door system accessories

Door height, h = H2 + H + 55
Door width, W = (L – 2n + 2) / n
Door quantity = n
H = Door’s height – top panel’s height
Side panel, F = 18 mm
Door Preparation – Drilling Dimension Hole A: plastic hinge hole, with dia 2.5 mm and depth 0-2 mm Hole B: steel hinge hole, with dia 35 mm and depth 12 mm

DrillØ 5 holes for up and down rails

Install accessories for up and down rails (Pay attention to direction)
