Top hung

Showing all 2 results

Product Details
Product Code	AVT-WS480

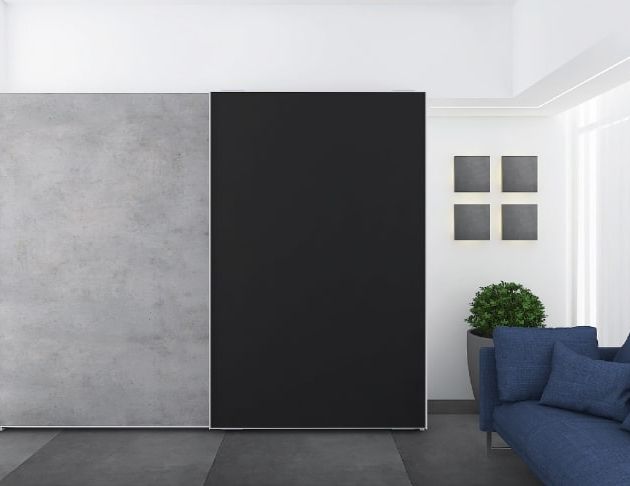

Application	Hanging sliding door system
Feature	Smooth and silent soft closing system; Damper with functionality of anti-jump and anti-decoupling (automatic hook coupling); Durable polyoxymethylene materials used for wheels to achieve optimum smoothness and silence for the sliding door
Loading Capacity	20 kg < Single Door Weight < 50 kg
Door Thickness	16-20mm; 20-25mm
Door Size Requirement	700 < Single Door Width < 1500mm; Height < 2500mm

Product Details

Product Code

AVT-WS480

Application

Hanging sliding door system

Feature

Smooth and silent soft closing system;
Damper with functionality of anti-jump and anti-decoupling (automatic hook coupling);
Durable polyoxymethylene materials used for wheels to achieve optimum smoothness and silence for the sliding door

Loading Capacity

20 kg < Single Door Weight < 50 kg

Door Thickness

16-20mm; 20-25mm

Door Size Requirement

700 < Single Door Width < 1500mm; Height < 2500mm

Accessories	Single side soft close (2 Doors)	Double soft close (2 Doors)	Double soft close (3 Doors)
Upper runner for outside door	2	0	0
Left up roller for inside door	1	1	2
Down roller for outside door	2	2	2
Upper runner for outside door (with lever)	0	2	2
Right up roller for inside door	1	1	2
Down roller for inside door	2	2	4
Upper left damper	1	2	2
Upper right damper	1	2	2
Down damper	2	4	4
Plastic supportor	2	2	4
Fixed block	2	2	2
Position template	1	1	1
Anti pinch device	1	1	2
ST4*16 Cross ressesed fiat head tapping screws	40	40	60
Inner stopper for outside door	1	0	0

Accessories

Single side soft close (2 Doors)

Double soft close (2 Doors)

Double soft close (3 Doors)

Drawing

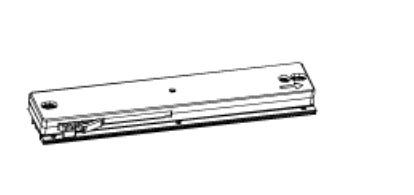

Upper runner for outside door
