| Product Details | |
|---|---|
| Product Code | AVT-WS801 |
| Application | Wooden incongruous sliding doors system (aluminum option available) |
| Feature | Create seamless partitions between living spaces such as kitchens, living/dining areas, bedrooms, and wardrobes; simultaneous and symmetrical movement of both left and right-hand side doors with a push on just one side; smooth and silent operation with double-sided soft-close functionality. |
| Loading Capacity | 60-100kg |
| Door Thickness | 35-50mm |
| Door Size Requirement | 580 < Single Door Width < 1200mm |
Sliding door system accessories
| Accessories | Qty | Drawing |
|---|---|---|

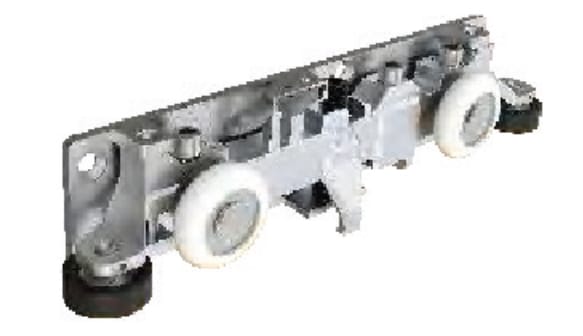

| Upper runner | 1 |  |
| Soft close device | 2 |  |
| Side runner | 2 |  |

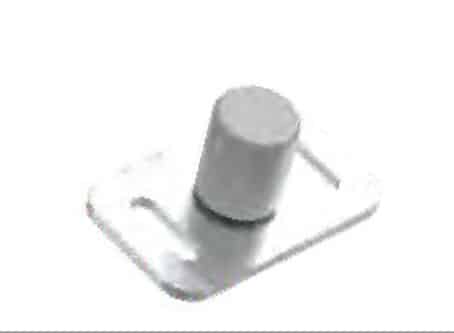

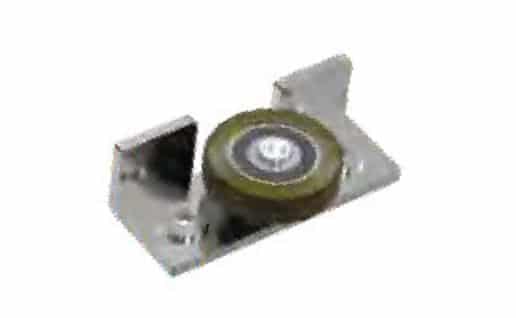

| Down guide roller | 1 |  |

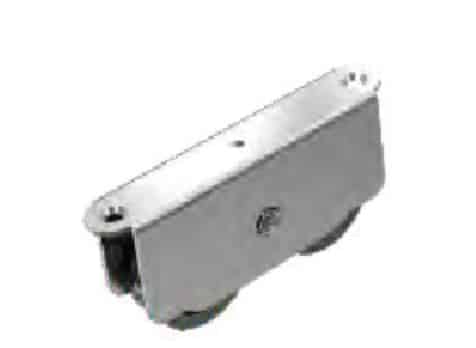

| Down runner | 2 |  |

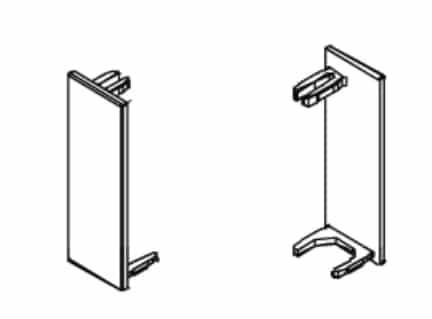

| End plugs | 1 |  |

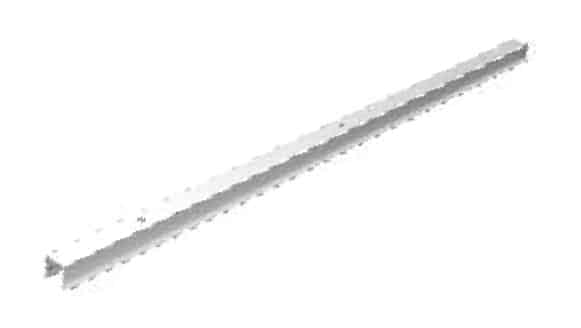

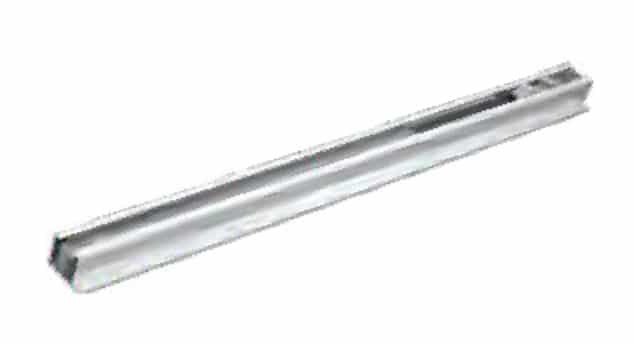

| Rail | 1 |  |

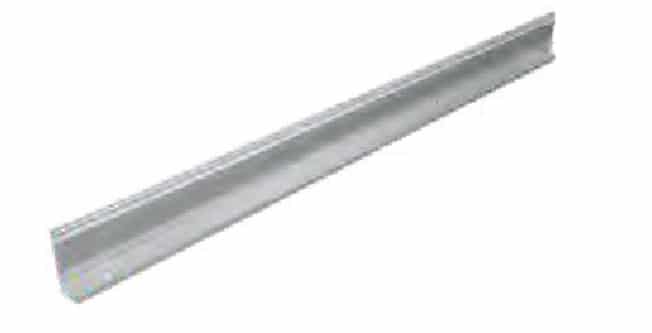

| Down rail | 1 |  |
Door Size
Rail Installation Size
Wooden Door Installation Mode 1 (Door Completely Opening)
Damper Installation Size
Wooden Door Installation Mode 2 (Door Partially Opening)
Damper Installation Size
