| Product Code
| AVT-WS380 |
| Application
| External concealed sliding door system for solid wood, panel wood, and
aluminum door frames |

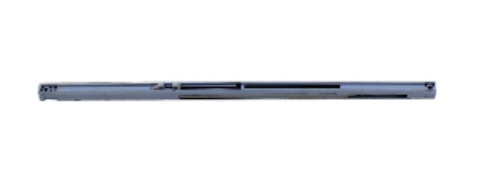

| Feature | Easy installation - no grooves required to be made as roller design is visible for external installation; Smooth and silent soft closing system; Concealed damper with functionality of anti-jump and anti-decoupling (automatic hook coupling); Durable polyoxymethylene materials used for wheels to achieve optimum smoothness and silence for the sliding door. |
| Loading Capacity
| 10 kg < Single Door Weight < 50 kg |
| Door Thickness
| Up to 32mm
|
| Door Size Requirement
| 500 < Single Door Width < 1200mm; Height < 2500mm |
