Hanging Sliding Door System – 80 kg

Product Details

Product Code	AVT-WS510
Application	Hanging sliding door system
Feature	Easy installation with a clip-on damper and a special design for the down runner; integrated dampers and parts; side-adjustable screws; automatic rail cleaning for smooth and silent runner movement; adjustable sync damping with high-quality soft-close performance; durable polyoxymethylene wheel materials for optimum smoothness and silence in sliding doors.
Loading Capacity	20 kg < Single Door Weight < 80 kg
Door Thickness	16-46mm.
Door Size Requirement	700 < Single Door Width < 1500mm; 2.5*Door Width < Height< 2500mm

Accessories	Single side soft dose for 2 doors	Double soft dose for 2 doors	Double soft close for 3 doors	Full soft dose for 3 doors

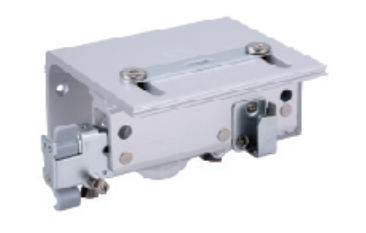

Left Up Roller For Outside Door	1	1	1	1
Left Up Roller For Inside Door	1	1	2	2

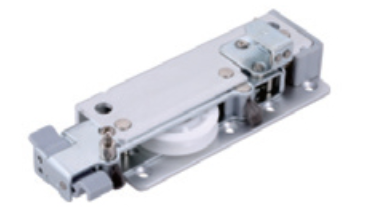

Down Roller For Outside Door	2	2	2	2

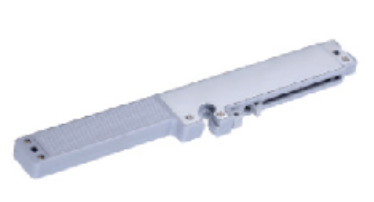

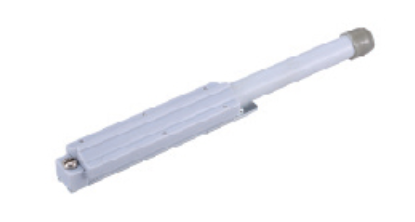

Up Damper	2	4	4	6

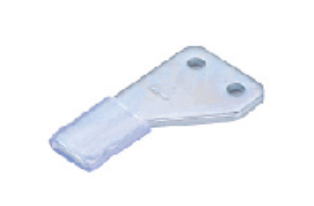

Stopper	2	4	4	4
ST4x16 Cross Ressesed Flat Head Tapping Screw	40	40	60	60

Accessories	Single side soft dose for 2 doors	Double soft dose for 2 doors	Double soft close for 3 doors	Full soft dose for 3 doors
Right Up Roller For Outside Door	1	1	1	1
Right Up Roller For Inside Door	1	1	2	2
Down Roller For Inside Door	2	2	4	4
Up Damper	2	4	4	4
Anti pinch device	1	1	2	2
Anti-collide stopper	0	0	0	1
