Product Details
| Product code | AVT-P038-DG |
| Loading capacity | 25N |
| Distance | 38mm |
| Material | POM |
| Finish | White/Dark Grey |
| Magnetic force | 4300Gs |
The Basic Components
External Installation Type with Magnet
Rebound Buffer (with Magnet)
Straight Mounting Plate
Decorative Cover
ST4*16 Countersunk Head Self Tapping Screw
Magnet Absorption Plate
ST3*10 Countersunk Head Self Tapping Screw

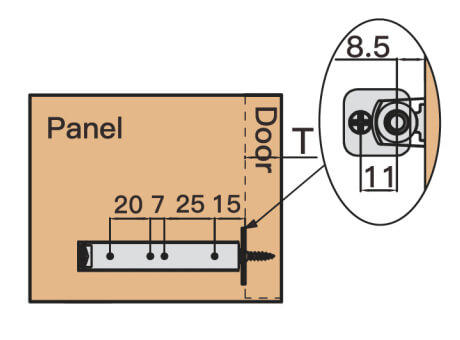

Installation Dimensions (mm)
External door
Minimum gap is 3mm
External door
Fixing screw on adsorption plate 1 Imm away from center of rebound buffer
The rebound buffer club head is rotatable to adjust door gap, adjustable range is —1&+5mm
Align the mounting plate to the side panel,install the screws,
and then clip on the decorative cover.
and then clip on the decorative cover.
Removal for decoration cover
Removal for decoration cover
