| Product Details | |
|---|---|
| Product Code | AVT-WS801 |

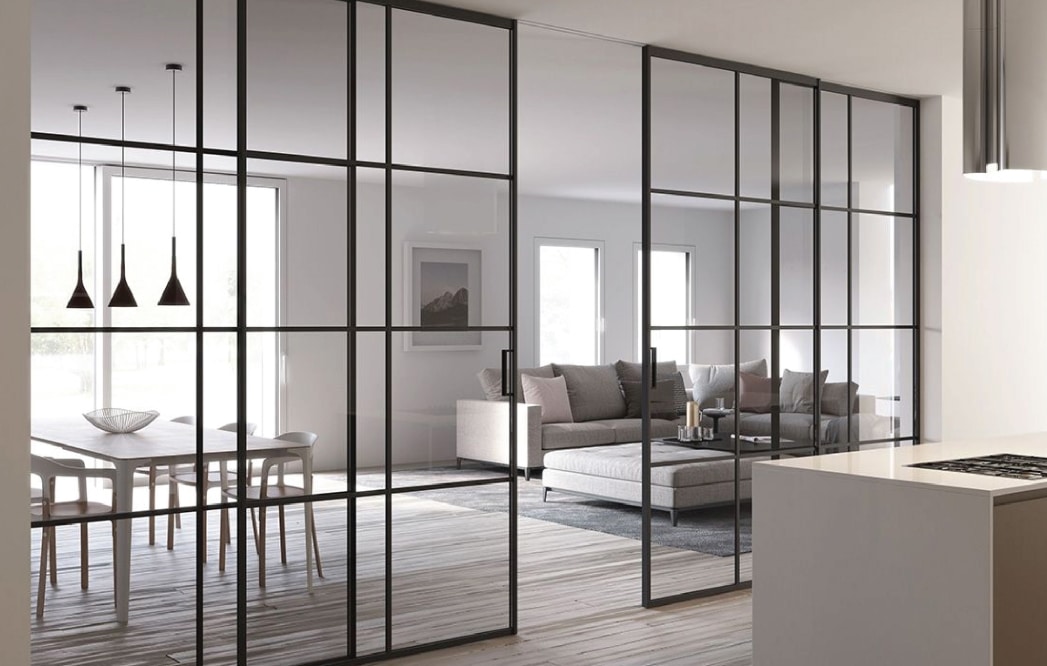

| Application | Wooden incongruous sliding doors system (aluminum option available) |
| Feature | Create seamless partitions between living spaces such as kitchens, living/dining areas, bedrooms, and wardrobes; enable simultaneous and symmetrical movement of both left and right-hand side doors with a push on just one side; ensure smooth and silent operation with double-sided soft-close functionality. |
| Loading Capacity | 60-100kg |
| Door Thickness | 35-50mm |
| Door Size Requirement | 580 < Single Door Width < 1200mm |
Sliding door system accessories
| Accessories | Qty (Pcs) | Drawing |
|---|---|---|

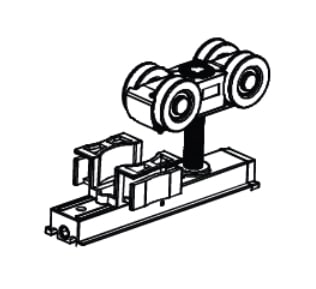

| Outside rollers | 1 |  |
| Inside rollers | 1 |  |

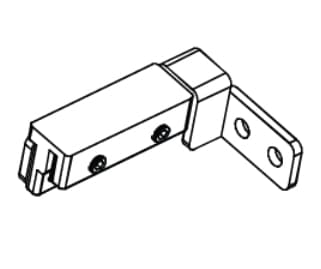

| Belt fixing part | 1 |  |

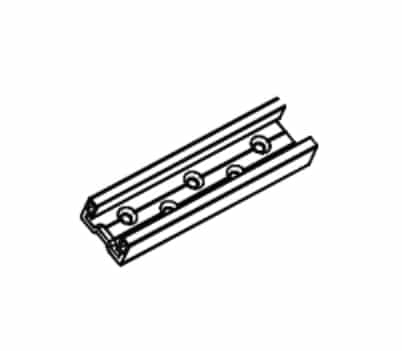

| Linkage runner guider | 2 |  |

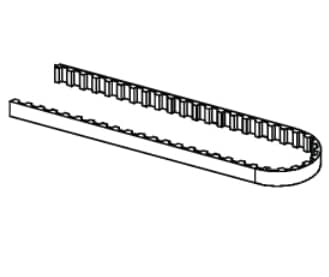

| Transmision belt 1 2 meter | 1 |  |

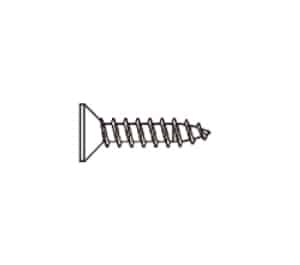

| ST3.5*1 2 cross countersunk head tapping screws | 4 |  |

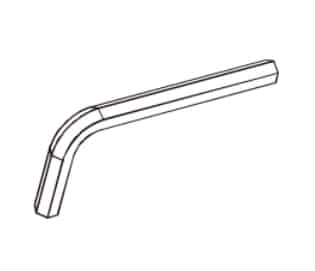

| 2mm allen key | 1 |  |
| 2.5mm allen key | 1 | |
| 4mm allen key | 1 | |
| Accessories | Qty (Pcs) | Drawing |
|---|---|---|

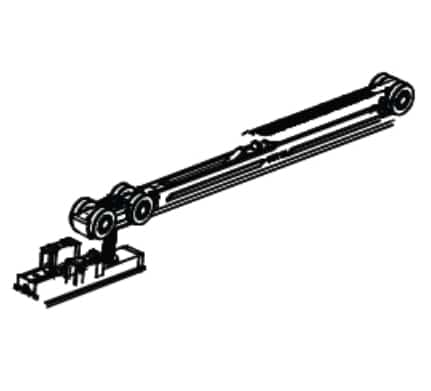

| Inside rollers with damper | 1 |  |

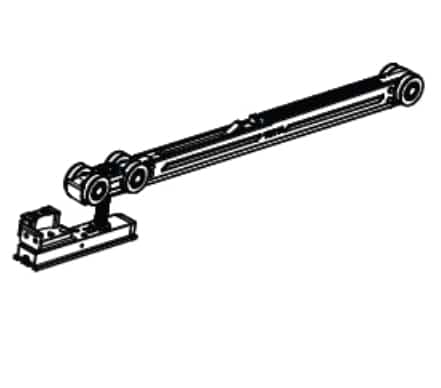

| Outside rollers with damper | 1 |  |

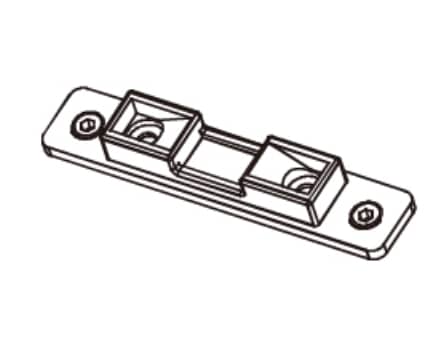

| Damper stopper | 2 |  |

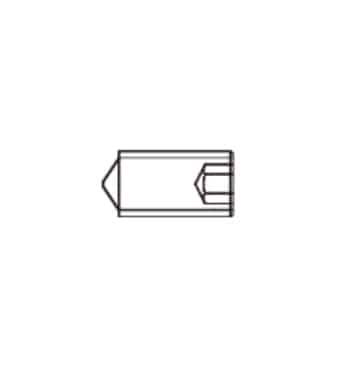

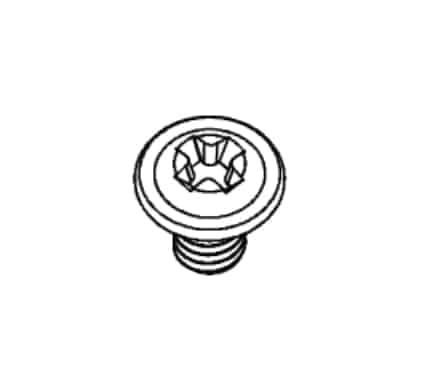

| M4*6 screw | 2 |  |

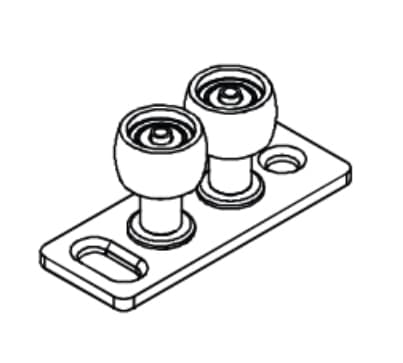

| Wooden door down guiding roller | 2 |  |
| Wooden door hanging plate | 4 |  |
| M4*12 inner hexagon screw | 8 |  |
| 3mm extended key | 1 | |

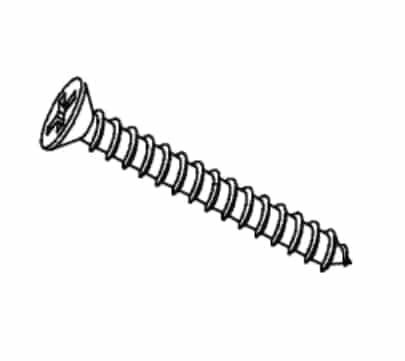

| ST4*30 cross countersunk head tapping screws | 20 |  |
Installtion for 2 Moving Doors + 2 Fixed Doors
Installation for 3 Doors + 1 Door Fixed
Rail accessory assembly
Linkage belt assembly
Down guider assembly
Door assembly
