| Product Details | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Code | AVT-WS250 | ||||||||||

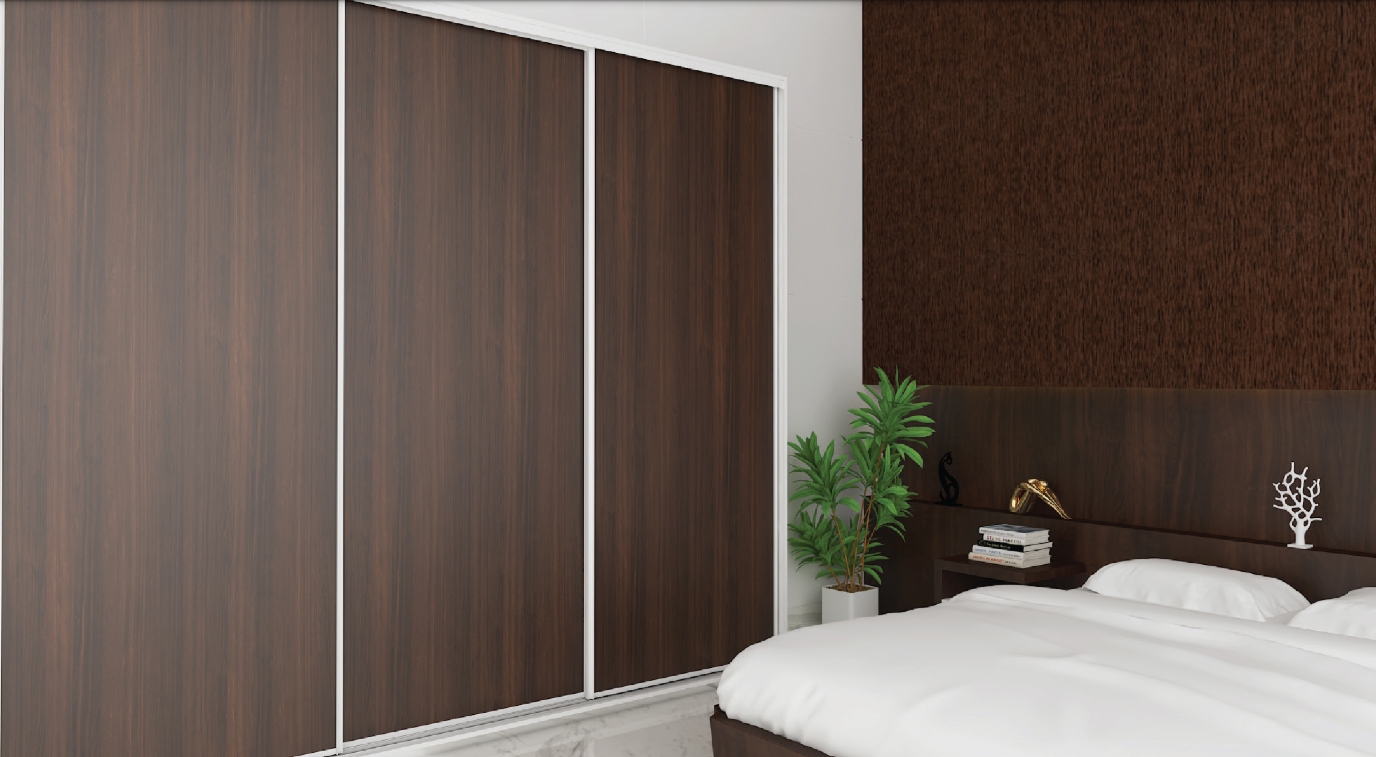

| Application | Internal concealed sliding door system for solid wood, panel wood, and glass doors | ||||||||||
| Feature | Damper with anti-jump and anti-decoupling functionality (automatic hook coupling); durable polyoxymethylene wheel materials ensuring optimum smoothness and silence for sliding doors. | ||||||||||
| Loading Capacity | 10kg < Single Door Weight 60kg | ||||||||||
| Door Thickness | 18-32mm | ||||||||||
| Door Size Requirement | 500 < Single Door Width < 1200mm; Height< 2500mm | ||||||||||
Sliding door system accessories
| Accessories | 2 Door | 3 Door | Drawing | Accessories | 2 Door | 3 Door | Drawing |
|---|---|---|---|---|---|---|---|

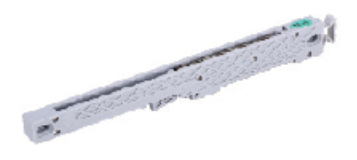

| Left upper runner | 2 | 3 |  | Damper | 4 | 4 |  |
| Right upper runner | 2 | 3 |  | Down runner | 4 | 6 |  |
| 4*14 cross pan head tapping screw | 12 | 16 |  | 4* 16 cross tapping screw | 16 | 24 | |
| 4*30 cross countersunk head tapping screw | 8 | 8 |  | Allen key | 1 | 1 |  |

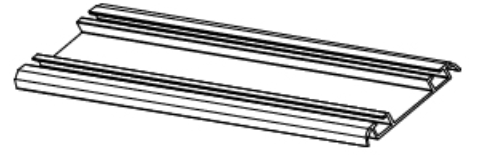

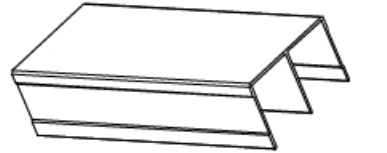

| Down rail |  | Upper rail |  |
Installation
Upper Rail
Down Rail
