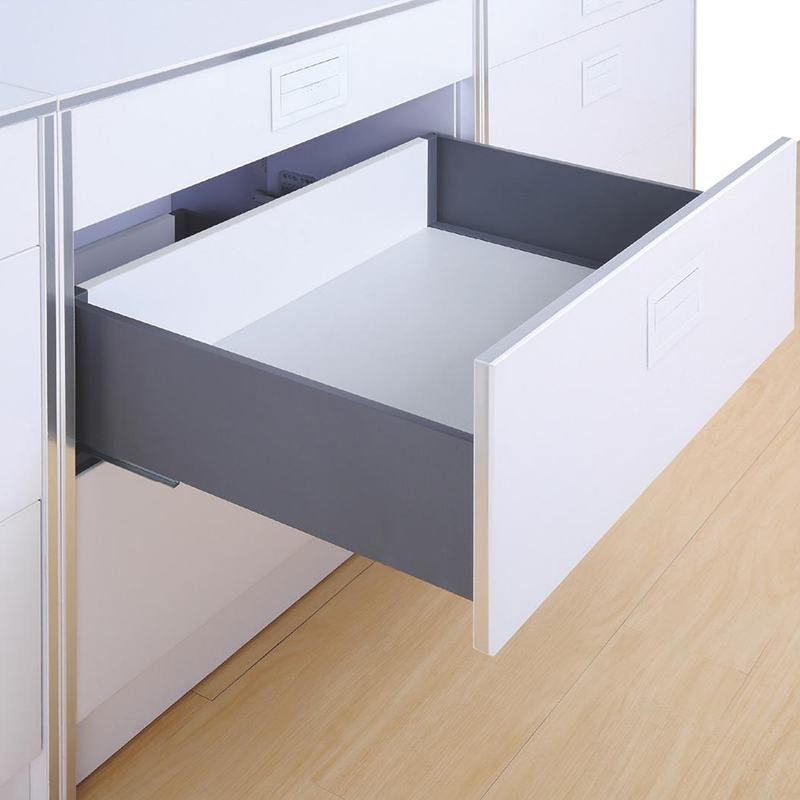

| Product Details | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Application | General home furniture or other drawer applications. | ||||||||||
| Feature | Light and smooth concealed full extension soft closing system. Quick and easy assembly and dismantling of drawer. Integrated 3D front panel adjustment. Modern and slim. | ||||||||||
| Loading capacity | 45KG/99lbs | ||||||||||
| Finishes | Grey/Anthracite | ||||||||||
| Side thickness | 13mm | ||||||||||
| Soft closing time | 1.2-1.8so | ||||||||||
| Opening force | 12-15N | ||||||||||
Drawer Box Specification (mm)
| Product Code | Internal Wall Height(mm) |
|---|---|
| AVT-SLTD-100-DG-L | 100 |
| Product Code | Internal Wall Height(mm) |
|---|---|
| AVT-SLTD-150-DG-L | 150 |
| Product Code | Internal Wall Height(mm) |
|---|---|
| AVT-SLTD-180-DG-L | 180 |
| Basic Length (L) | Internal Length | Min. Installation Length | Min. Height (B) | Packaging |
|---|---|---|---|---|
| 270mm | 244mm | 280mm | B+50mm | 6 SETC/TNB |
| 300mm | 274mm | 305mm | B+50mm | 6 SETC/TNB |
| 350mm | 324mm | 355mm | B+50mm | 6 SETC/TNB |
| 400mm | 374mm | 405mm | B+50mm | 6 SETC/TNB |
| 450mm | 424mm | 455mm | B+50mm | 6 SETC/TNB |
| 500mm | 474mm | 505mm | B+50mm | 6 SETC/TNB |
| 550mm | 524mm | 555mm | B+50mm | 6 SETC/TNB |
Assembly
Installation of side panel connector
Connection of side panel with facia
Open decorative cover
Tighten facia and side panel
Installation Dimensions (mm)
